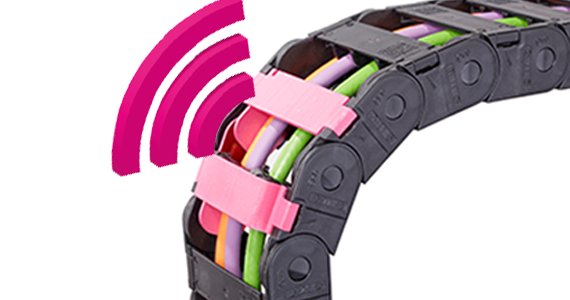

iSense EC.I.NEW

Service life monitoring for all
e-chain® installation types

Integrated offline service life monitoring for unsupported and roller chain applications

Excess clearance between a chain link's bolt and hole is a clear indication of the decreasing service life of an e-chain system®. The EC. I. SU.02 sensor measures this clearance in clear percentage increments and sends it via LoRa to the icom. plus module. There, the remaining service life is calculated from movement data from the system's control system and a replacement recommendation made as necessary. Years of integrated battery operation based on an energy-optimised transmission procedure. Energy harvesting concepts are also planned.

Tech up with igus news

Tech up

  • new sensors allow measurement of percentage bolt/hole connection abrasion levels
  • From E2 (2500 series) to E4/P4 to an inner height of up to 112mm
  • Designed especially for unsupported and roller chain applications
  • Transmission of sensor and dynamic data via a newly developed LoRa module to the icom. plus offline module
  • Energy-efficient communication concepts allow years of battery life
  • Optional "Energy Harvesting"
Cost down with igus news

Cost down

  • Clear measurement of product service life reduces costs by  avoiding a premature e-chain system® replacement
  • icom. plus integration allows the use of established concepts.
  • Output of service life information and warnings via HMI systems or the local network
Evidence from igus news

Proof


  • Current test set-up in the world's largest laboratory for dynamic energy transmission systems.
Recycling with igus news

Sustainability

  • Knowledge of the
    maximum service life allows emergency deployments and premature replacement to be avoided
  • Recycling of installed energy chains with the igus chainge programme free of charge
  • More on the igus contribution Plastic2Oil

EC.I.SU.02 animation

explains the system in 49 seconds


  • The EC. I. SU.02 measures the distance between the chain's bolts & chain holes

  • The status can be transmitted via LTE, LoRaWan, or Bluetooth

  • Energy chain condition can be viewed at any time

EC.I.SU.02 explanation video

Richard Habering explains the system in 91 seconds

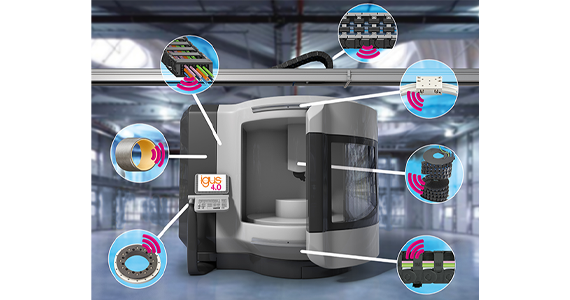

Potential application areas

We have developed EC.I.SU.02 for this purpose


Unsupported e-chain systems in:
  • Machine tools
  • Woodworking machinery
  • Semiconductor production
  • Logistics

Gliding e-chain systems with:
  • igus rol e-chain® in cranes
isense EC.I.SU.02

Sample


Beta tests possible starting in Q2 2020

Availability


Q2 2020 for the 2500 & E4.32 series
Q3 2020 for the E4/P4 series
