drylin® R shaft guides

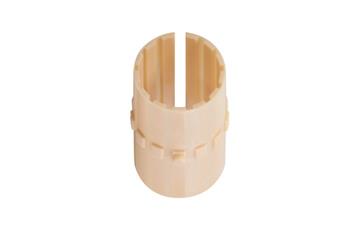

Components within the drylin® R shaft guides are identically dimensioned as recirculating ball bearings - in contrast, the drylin® R systems minimise noise emissions and reduce surface pressure by the larger contact area between guide and shaft. This allows the use of soft shaft materials such as aluminium or carbon fibre. All in all, the largest range of shafts is available in the programme of shaft linear guides with seven different materials. In combination with three different bearing types made of solid plastic, aluminium or stainless steel as well as five linear liners for different environments, drylin® R is suitable for maximum flexibility and all applications. The unique geometry of the bearing liners ensures a firm hold in the housing by means of a positive locking. This is contrary to glued or pressed solutions even under extreme conditions such as temperature, pressure, impacts and water. As required, a quick replacement of the individual linear liner is also possible.


Produkty

Počet výrobků: 94

drylin® R aluminium shaft, AWMP
  • Lightweight
  • Ideal in combination with liners made from iglidur® J/J200
  • Low wear of plain bearings
  • Corrosion-free
  • Aluminium EN AW 6060/6061 (ALU)

od 31,75 USD / m

'Na stránku výrobku
drylin® R aluminium shaft, tube I hollow shaft, AWMR
  • Extremely low weight
  • Ideal in combination with liners made from iglidur® J/J200
  • Low wear of plain bearings
  • Corrosion-free
  • Aluminium EN AW 6060/6061 (ALU)

na požádání

'Na stránku výrobku
drylin® R steel shaft, SWM, 1.1213
  • Cost-effective standard
  • High load capacity
  • Dry area applications
  • Low coefficient of friction against plastic bearings
  • 1.1213 (Cf53) steel

na požádání

'Na stránku výrobku
drylin® R steel shaft, SWMH, 1.1213 hard-chromed
  • Cost-effective standard
  • High load capacity
  • Dry area applications
  • Low coefficient of friction against plastic bearings
  • 1.1213 (Cf53) steel

na požádání

'Na stránku výrobku
drylin® R stainless steel shaft, EWM, 1.4112
  • High corrosion resistance
  • High chemical resistance
  • Ideal solution for wet applications
  • Stainless steel,  EWM 1.4112 (X90)

na požádání

'Na stránku výrobku
drylin® R stainless steel shaft, EEWM, 1.4034
  • High corrosion resistance
  • High chemical resistance
  • Ideal solution for wet applications
  • Stainless steel EEWM 1.4034 (X46)

na požádání

'Na stránku výrobku
drylin® R stainless steel shaft, EWMR, 1.4301
  • High corrosion resistance
  • High chemical resistance
  • Ideal solution for wet applications
  • Stainless steel EWMR 1.4301 (V2A)

na požádání

'Na stránku výrobku
drylin® R stainless steel shaft, EWMS, 1.4571
  • High corrosion resistance
  • High chemical resistance
  • Ideal solution for wet applications
  • Stainless steel EWMS 1.4571 (V4A)

na požádání

'Na stránku výrobku
drylin® R carbon fibre shaft, CWM
  • Extremely low weight
  • High flexural strength

na požádání

K dispozici na požádání
'Na stránku výrobku
drylin® R aluminium shaft, supported, AWMU, EN AW 6061/6060
  • Lightweight
  • Ideal in combination with liners made from iglidur® J/J200
  • Low wear of plain bearings
  • Corrosion-free
  • Aluminium EN AW 6060/6061 (ALU)

na požádání

'Na stránku výrobku
drylin® R steel shaft, supported, SWUM, 1.1213
  • Cost-effective standard
  • High load capacity
  • Dry area applications
  • Hard chrome-plated also available
  • Low coefficient of friction against plastic bearings
  • 1.1213 (Cf53) steel

na požádání

'Na stránku výrobku
drylin® R stainless steel shaft, supported, EWUM, 1.4112
  • High corrosion resistance
  • High chemical resistance
  • Ideal solution for wet applications
  • Stainless steel 1.4112 (X90)

na požádání

'Na stránku výrobku
drylin® R steel shaft, low supported, SWUMN, 1.1213
  • Cost-effective standard
  • High load capacity
  • Dry area applications
  • Hard chrome-plated also available
  • Low coefficient of friction against plastic bearings
  • 1.1213 (Cf53) steel

na požádání

'Na stránku výrobku
drylin® R stainless steel shaft, low supported, EWUMN, 1.4112
  • High corrosion resistance
  • High chemical resistance
  • Ideal solution for wet applications
  • Stainless steel 1.4112 (X90)

na požádání

'Na stránku výrobku
drylin® R stainless steel shaft, partly supported, EWUM-ES, 1.4112
  • High corrosion resistance
  • High chemical resistance
  • Ideal solution for wet applications
  • Stainless steel 1.4112 (X90)

na požádání

'Na stránku výrobku
