chainflex® cables work ... in moving applications all over the world!

• Harmonisation with all components of the TopDrive for optimum fit in connector and chain
• Quickly available as standard product for repairs and retrofits

• Reduction of costs by approx. 35% due to waiving the need to manufacture one-off products for projects.

• Optimised for twisted (±180 degree/m) use on robots
• For small installation spaces up to 6.8xd with a service life that can be calculated online

• 32% more cost-effective than solutions currently available

• 10 million double strokes in e-chains® guaranteed
• Range of products in stock enables individual choice for the customer

• Hybrid technology reduces the amount of cable needed by 50%
• Installation space needed in the e-chain is reduced by up to 40%

• 18% less diameter
• 16% reduction of installation space of the energy chain system

• 18% smaller diameter allows smaller e-chain
• Reducing the weight of the overall system and thus making the mechanical components lighter

• The label with QR code for the product page makes re-ordering 60% faster.
• Simple unreeling directly from the box
• Simple storage – stack up to three cartons directly at the place of use

• 84% more cost-effective shipment cost* with UPS standard
• Delivery within 1-2 business days with UPS standard
• No storage system or drum unreeler necessary

• Qualified cables
• Reliability from a neutral institution

• Dependability for the tested cables

• One cable for all major markets
• Gives confidence in the design process

• No duplicated stock
• No additional costs in respect of customs duty
• Smooth passage through customs

• Safety with defined materials for the maritime sector
• Clear indication of durability in moving applications

• Minimisation of the risk of failure

• 5 million double strokes in e-chains® guaranteed
• Small cross-section for use in small installation spaces

• Save 51% costs* compared to CF21
• 36-month guarantee

New at SPS 2019

• 12.5% improved temperature stability with higher UL temperature
• 30% lower permittivity than motor cables with PVC insulation

• Allows smaller installation spaces
• 36-month guarantee

• UL voltage of 300V doubled to 600V
• Can be laid directly next to cables with the same voltage level

• Additional separating elements between the cables in the e-chain® are no longer necessary, cost reduction of €2.10/m

New at SPS 2019

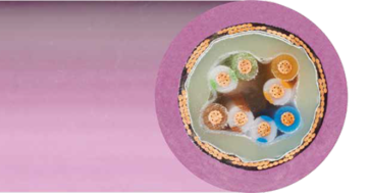

• Cable 25% thinner than that of CAT5e, with the same data transmission rate
• This allows continuous Ethernet communication, including the "last metre" (from the control cabinet to the machine)

• Installation spaces can be 25% smaller than CFBUS.PUR.045
• Costs are 20% lower than those of a 4-paired CAT5e cable (CFBUS.PUR.045)

New at SPS 2019

• UL voltage of 30V increased to 300V
• Laid directly next to cables with a higher voltage level possible
• Extremely small bend radii and long travels

• Additional separating elements between the cables in the e-chain® no longer necessary
• Of seven cable qualities, always find the most cost-effective DriveCliq cable that is certain to work

New at SPS 2019

• Greater current carrying capacity (+16% more) thanks to improved core insulation
• New generation with up to 20% smaller outer diameter
• Smallest bend radii up to 21%

• Save 20% of installation space, allowing smaller e-chain® designs
• Costs reduced by up to 50%* thanks to cross-section reduction potential

New at SPS 2019

• 100% more double strokes guaranteed
• Bend radii 41% less than those of CF11

• Guaranteed cable reliability doubled in e-chains® (from 20 million to 40 million cycles)
• Reduce cost by up to €16.68/m (since the cable lasts twice as long in application)

New at SPS 2019

• Optimised for twisted (±180°/m) use on robots
• Product range addition for small installation spaces

• Use in small installation spaces
