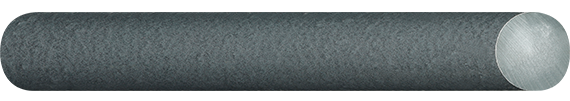

iglidur® bar stock HLW round bars

High resistance to temperature and chemicals

iglidur® HLW is a fibre-reinforced thermoplastic material especially developed for applications in high atmospheric humidity or under water. Plain bearings made from iglidur® HLW can be used completely free of lubrication; in wet applications, the surrounding media acts as additional lubricant. Suitable for temperatures up to +200°C. Very low coefficients of friction when used with hardened shafts.

Tech up

• Up to 50% lower coefficient of friction than PEEK and PPS
• iglidur® HLW works very well in high humidity and under water
• at temperatures of up to +200°C
• Excellent chemical resistance

Cost down

• Approx. 50% more cost-effective than PEEK
• Fast and cost-effective machining for prototypes and small up to medium series requirements

Proof

• Approx. 50% more cost-effective than PEEK, with only approx. 35% higher wear on average (test: wear, rotating; t= 23°C, p= 1 MPa, v= 0.3 m/s)
• Approx. 70% less wear, compared to PPS (test: wear, rotating; t= 23°C, p= 1 MPa, v= 0.3 m/s)
• Up to 50% lower coefficient of friction compared to PEEK and PPS (coefficient of friction rotating; t= 23°C, p= 1 MPa, v= 0.3 m/s)

Sustainability

●    Made from 100% recycled material
●    No lubrication necessary
●    igus® supports the circular economy of plastics and is investing in chemical recycling. Learn more about the topic at:
Chemická recyklace HydroPRS

Order the sample box free of charge

Request our sample box and convince yourself of the quality of our materials.

Free brochure

This brochure explains everything you need to know about the use of bar stock made of high-performance polymers

Materials with special properties

Learn everything about our tribologically optimised materials and their properties.
