Linear plain bearings drylin® R

Dimensions identical to recirculating ball bearings

drylin® R linear plain bearings are based on extremely wear-resistant plastic sliding elements. As drylin® R linear plain bearings have the same dimensions as conventional standard ball bearings, a 1:1 replacement is possible without problems. The special shape permits their use even in extreme environments.

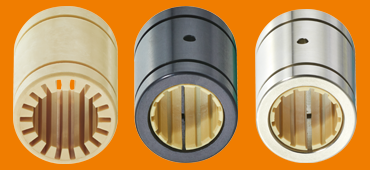

Closed linear plain bearings

Linear plain bearings drylin® R for linear shafts

For guide shafts that are not supported
Optional with further liners
Solid plastic, hard-anodised aluminium or stainless steel

Buy closed linear plain bearings

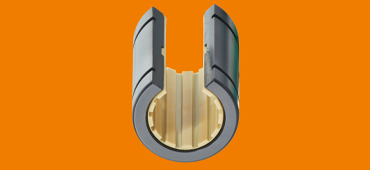

Open linear plain bearings

Linear plain bearings drylin® R for supported linear shafts

For linear shafts that are supported and partly supported
Anodised aluminium housing
Also available as floating bearing version

Buy open linear plain bearings

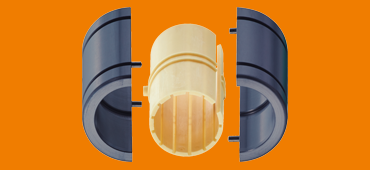

Splittable linear plain bearings

Linear plain bearings drylin® R splittable

Quick replacement of the liner without dismantling
Optional with further iglidur® liners
Anodised aluminium housing

Buy splittable linear plain bearing

drylin® innovations 2021 - Get to know the new linear round shafts with increased stiffness now

Tech up, cost down: we will always give you at least one of the two. That is our profession and what we have offered for many years. The challenges of the "upside-down" year of 2021 have spurred us on to improve our efforts. Experience the drylin® innovations of 2021.

About the new linear round shafts

Advantages drylin® R linear plain bearings

100 % lubrication-free
Dimensions identical to standard ball bearings
Large variety of choice in housing shapes
Shafts, shaft end blocks and accessories available from stock
8 different shaft materials
Replaceable liners
VA stainless steel housing available

To drylin® R shop

Liners for linear plain bearings

For different applications

Positive clipping into housing hole
Axial safety through snap ring groove
Rotation lock by engaging the locking pin in the hole
iglidur® X liner from -100°C to max. 250°C
iglidur® E7 up to 8x longer service life
iglidur® A160 FDA-compliant

More about plain bearing liners

drylin® R quad block

For linear shafts that are supported and not supported

For linear shafts that are mounted parallel
Aluminium housing
Also self-aligning
With four drylin® R linear plain bearings
Optional with further liners
Mounting of the bearings in the housing with a circlip according to DIN 472

Buy quad block

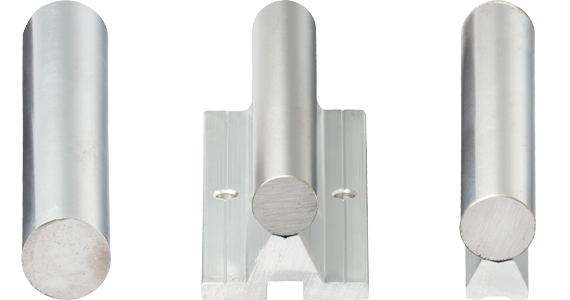

Linear shafts drylin® R

The right material for every linear application

Hard-anodised aluminium shafts for optimum running performance
VA stainless-steel shaft for high corrosion resistance
Hardened steel and stainless steel shafts
Metal-free and weight-optimised carbon shafts
Linear shafts that are supported or not supported

More about drylin® R linear shafts

drylin® R shaft guide design

Floating bearing for shaft guide

The drylin® R floating bearings offer great advantages in applications with parallel shafts. With their geometry, they are able to compensate for alignment and parallelism errors and should be used on the shaft located furthest from the drive mechanism.

drylin® R - Konstrukční tipy

drylin® R linear shaft system configured in 5 steps

With the drylin® linear guides expert, you can configure a drylin® R linear guide to suit your application and, at the same time, calculate the service life of the linear shaft system.

Configure drylin® R complete system
