Linear shaft housing drylin® R

Completely lubrication-free with identical dimensions to recirculating ball bearing systems

The pillow blocks for drylin® R shaft guide are based on special wear-resistant high-performance plastics that serve as sliding elements. That way, a hygienic and lubrication-free linear shaft system is made possible. The shape of the pillow blocks is not only robust, but they also have identical dimensions to conventional recirculating ball bearing systems, to make a 1:1 replacement with the linear sliding system as easy as possible.

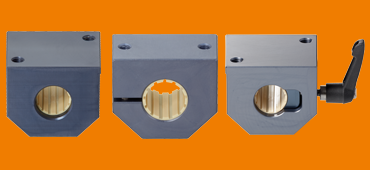

Linear housing – closed

Anodised aluminium housing
Pre-mounted liner
With manual clamp (optional)
Optional with adjustable housing

Buy closed linear housing

Linear housing – open

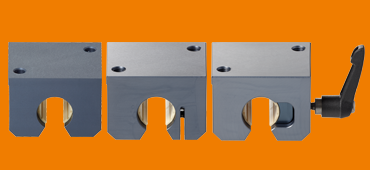

Linear shaft housing drylin® R open design

Anodised aluminium housing
Pre-mounted liner
Optional with manual clamp
Also available with floating bearing

Buy open linear housing

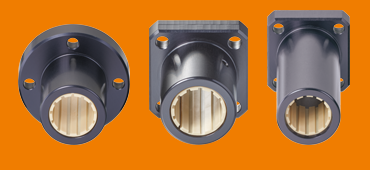

Linear housing with flange

Anodised aluminium housing
With round or square flange
Also available with floating bearing function

Buy linear housing with flange

drylin® innovations 2021 - Get to know the separable linear housing for round shafts now

Tech up, cost down: we will always give you at least one of the two. That is our profession and what we have offered for many years. The challenges of the "upside-down" year of 2021 have spurred us on to improve our efforts. Experience the drylin® innovations of 2021.

To the separable linear housing

Pillow block with aluminium housing and linear plain bearing

Aluminium housing
Equipped with drylin® R linear plain bearings
Tandem design with two linear plain bearings
Long or short design
Open or closed design
Securing of the bearing in the housing by DIN 472 circlips

Buy housing bearing with aluminium housing

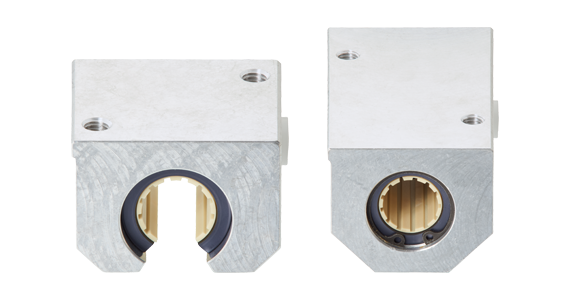

Pillow block drylin® R with aluminium housing

drylin® R quad block

For linear shafts that are supported and not supported

For linear shafts that are mounted parallel
Aluminium housing
Also self-aligning
With four drylin® R linear plain bearings
Optional with further liners
Mounting of the bearings in the housing with a circlip according to DIN 472

Buy quad block

Compensate for parallelism errors with floating bearings

Design rules for drylin® R

The floating bearings offer great advantages in applications with parallel linear shafts. Due to the geometry of the spherical plain bearing adapters, misalignments and parallelism errors are compensated. Therfore, a hard-anodisation protects the aluminium adapter from wear.

drylin® R - Konstrukční tipy

drylin® R complete system configured in 5 steps

With the drylin® linear guides expert, you can configure an individual drylin® R linear guide with linear shafts, linear carriages and linear housing bearing to suit your application and, at the same time, calculate its service life.

Configure linear shaft system
