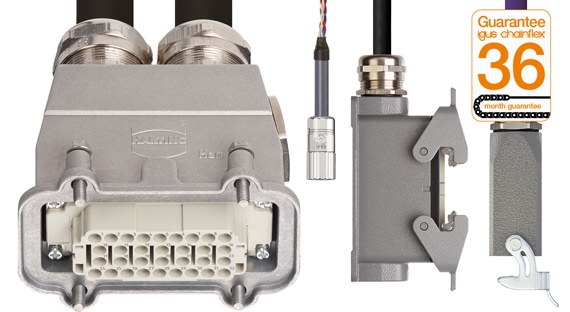

readycable extension cables

readycable® extensions for robots

Ready-to-connection extension cables for e.g. FANUC, KUKA or ABB

We are living in dynamic times - the general conditions of life can change at any moment. A high degree of flexibility and safety is therefore required. Both can be guaranteed by the new ready-to-connect extension cables from igus for robot applications.

Flexibility due to the new extension cables for your robot application in 7 cable qualities and price classes as well as the cables being cut to the required length to the exact centimetre, safety due to the complete testing of each individual readycable as well as the 36-month guarantee that igus typically gives on all cables.

All this enable you to act according to needs and to the best possible effect at any time, even in the highly dynamic environments of the automotive and parts supply industries.
Go to the online shop
Tech up

Tech up

  • Existing robot systems and interfaces can be extended flexibly with the thoroughly tested cable extensions
  • Harnessed, ready to connect and immediately ready for use
Cost down

Cost down

  • Up to 7 cable qualities and price categories: you choose the cable with the best price/performance ratio for your robot application
Proof

Proof

Sustainability

Sustainability

  • Equip robot applications with long-lived extension cables and extend maintenance intervals

Be fast and flexible with igus readycable for robot applications

An overview of all the details regarding the new extension cables for ABB

Robot typeigus® Part No.Cable typeNumber of cores and conductor nominal cross section     Outer diameter
IRB6620, 6640, 6650S, 7600MAT904141219Direct connection cable(18G2.5)C          25,5 MAT904141219
IRB6620, 6640, 6650S, 7600MAT904141220Direct connection cable(6x(2x0.25))C          9,0 MAT904141220
IRB 8700MAT904141221Direct connection cable(6x(2x0.25))C          9,0 MAT904141221

An overview of all the details regarding the new extension cables for FANUC

Robot typeigus® Part No.Cable typeNumber of cores and conductor nominal cross section     Outer diameter
M-900iB and R-2000iCMAT904141222Direct connection cable(7x(6x2.0))C          36,5 MAT904141222
M-900iBMAT904141223Direct connection cable(7x(6x2.0))C          36,5 MAT904141223
M-900iB and R-2000iCMAT904141224Direct connection cable(5x(4x0.25)+10x(3x0.75))C          27,0 MAT904141224

An overview of all the details regarding the new extension cables for Kuka

Robot typeigus® Part No.Cable typeNumber of cores and conductor nominal cross section     Outer diameter
QuantecMAT904141225Direct connection cable(5x(2x6.0+2x2.5)+2x(6x1.0)C)C          35,5 MAT904141225
QuantecMAT904141226Direct connection cable(5x(2x6.0+2x2.5)+2x(6x1.0)C)C          35,5 MAT904141226
Quantec and FortecMAT904141227Direct connection cable((4x0.38)C+4x1.5)C          11,5 MAT904141227
FortecMAT904141228Direct connection cable(2x(3x1.5)C+3x(3x10)+1G10)C          36,0 MAT904141228
FortecMAT904141229Direct connection cable((6x1.5)C+3x(3x4)+1G6)C          28,0 MAT904141229
FortecMAT904141230Direct connection cable(2x(3x1.5)C+3x(3x10)+1G10)C          36,0 MAT904141230
FortecMAT904141231Direct connection cable(2x(3x1.5)C+3x(3x10)+1G10)C          36,0 MAT904141231

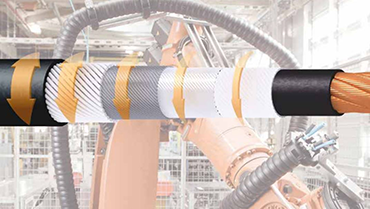

chainflex robot cables

Robot cables
chainflex® robot cables  are used in energy chains, robots or 3D applications. We give a 36-month guarantee on all our cables with a confidence based on our more than 30 years of experience in our 3,800m² test laboratory.
Click here

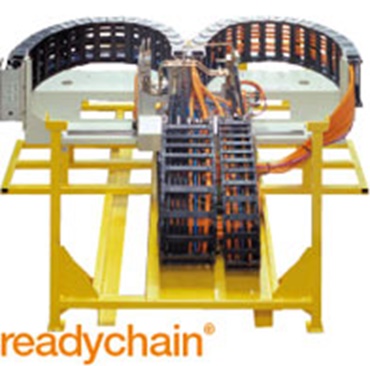

Harnessed energy chains - readychain

readychain portfolio Ready-to-install energy chain systems and harnessed cables . All ready-to-connect cables have been fully and thoroughly tested and can be ordered in the required length (with centimetre accuracy), with no minimum order quantity.


Click here

Energy chains overview

e-chains® Energy supply for robots made configurable online.   We can offer you an optimised solution for almost every robot from a selection of over 5,000 different articles.
