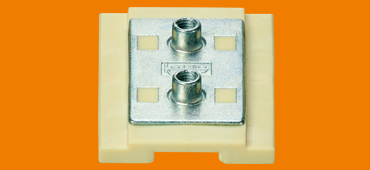

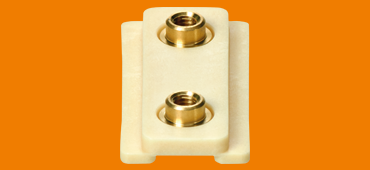

Low-profile linear carriages drylin® N

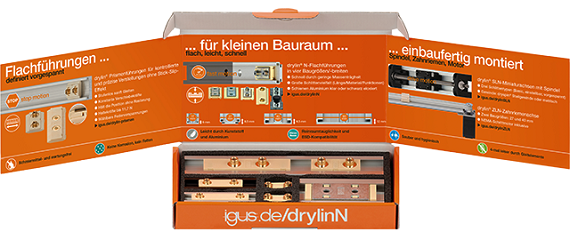

Your low-profile guide system sample box

Try out the advantages of the lubrication-free low-profile guide system

Convince yourself and order your free mini sample box with product samples and further information about our drylin N low-profile linear guide modular kit with its advantages.

The box contains low-profile guide rails with different coatings, maintenance-free single and double carriages in different sizes and a clearance-free pre-load prism slide.

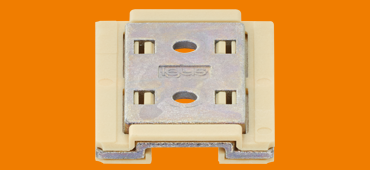

drylin N low-profile linear guides configured in five steps

With the drylin® linear guides expert, you can configure your low-profile drylin® N linear guide to suit your application and, at the same time, calculate its service life.

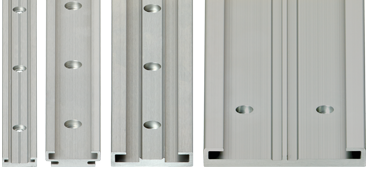

Low-profile drylin N linear rails

With reduced installation height

Find the low-profile guide rail from the drylin® N product range with installation heights of 6mm to 12mm. All installation sizes of the drylin® N series are anodised in aluminium or black with an anti-reflection effect.

Construction of drylin N low-profile linear guide

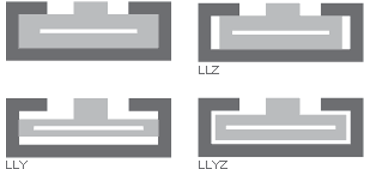

Floating bearing for low-profile linear rails

Due to their geometry, floating bearings compensate misalignments and parallelism errors. Thereby, specific design tips must be observed.
