Linear shafts drylin® R

drylin® R linear shaft system configured in 5 steps

With the drylin® linear guides expert, you can configure a drylin® R linear guide to suit your application and, at the same time, calculate the service life of the linear shaft system.

drylin® R linear round guide

The benefits at a glance

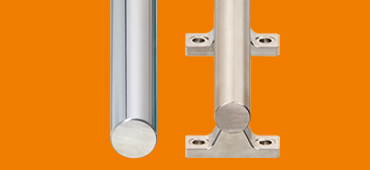

• Hard-anodised aluminium shafts for optimum running performance
• VA stainless-steel shafts for high corrosion resistance

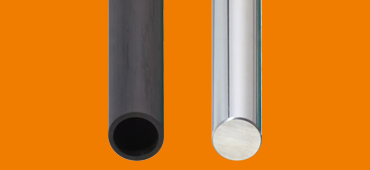

• Hardened steel and stainless steel shafts
• Metal-free carbon shafts

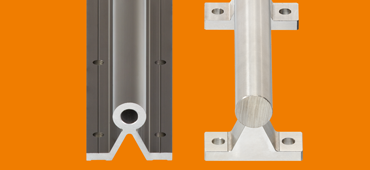

• Linear shafts with or without support

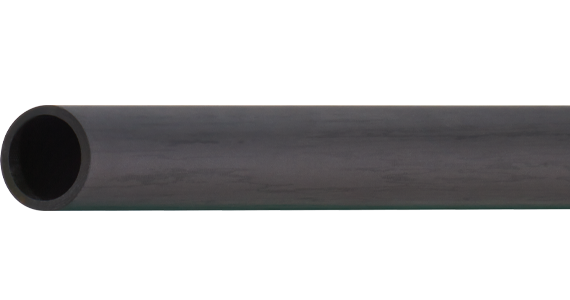

The light linear shaft made of carbon

The shaft made of CFK Composite is especially light and strong

The carbon linear shaft is a lot lighter than linear shafts made of aluminium or stainless steel. The carbon shaft is used wherever weight needs to be reduced in design.
The X-ray transparency is another advantage of the carbon fibre. So the material is often used in medical or measurement technology.

• Extremely lightweight
• X-ray transparent
• High strength and resistant
• Non-metallic
• Non-magnetic

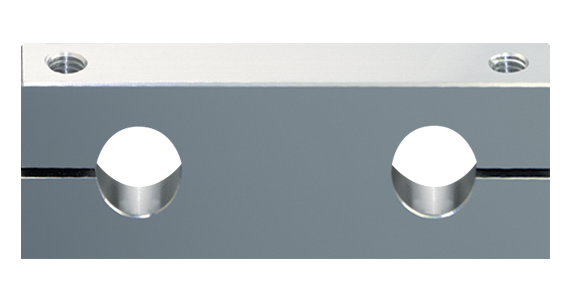

Shaft end support for drylin® R linear shafts

For the assembly of parallel linear shafts

• Material: aluminium
• Moveable or fixed version (with through hole)
• for shaft diameters of 8mm to 40mm

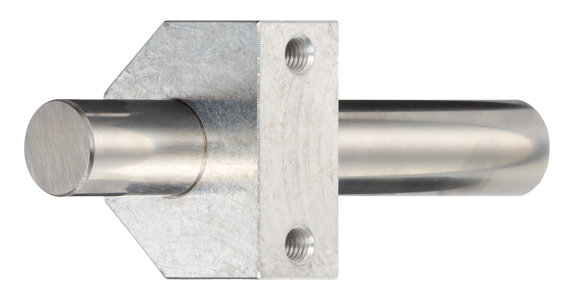

Shaft end block for drylin® R linear shafts

Easy assembly, secure grip

igus® offers the drylin® R shaft end blocks in different versions and for shaft diameters of 6mm to 60mm, depending on the design.

• Normal type for 8mm - 60mm diameter
• Compact type for 6mm - 50mm diameter
• Narrow type for 8mm - 40mm diameter
• And as flange shaft support 12mm - 50mm diameter
