Fail-safe chainflex® profinet cables and Telegärtner M12 D-coded connectors

Starting situation and symptoms

• Time-consuming repair work
• Additional amount of work
• Delayed deliveries
• Customer complaints

The analysis by the igus and Telegärtner test labs showed:


• The installed cables were not able to withstand the high mechanical loads and failed after a short time.
• The insulation displacement termination of the existing connectors were not optimised for the large core cross-sections, which led to contact problems.

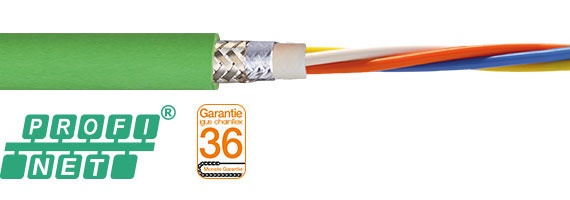

chainflex profinet cables

• High-quality core insulation
• Structure (4x0.34)C
• Gusset-filling extruded inner jacket for highest dynamics
• Overall shield with optimised braid angle
• Pressure-extruded, abrasion-resistant outer jacket
• Tested with a 36 month guarantee

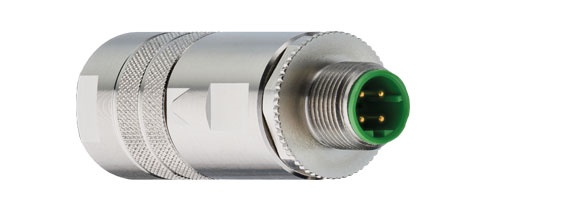

The Telegärtner M12 plug-in connector

• Ideal design: sufficient installation space protects against short circuits
• The insulation displacement connections are not only designed for single-wire and seven-wire conductors, which is the normal case, but also for fine-wire 19-type strands
• Universal core manager for core diameters from 0.9mm to 1.6mm for safe connection of a wide variety of core and cable types
