Plain bearing liner for drylin® linear systems

Choose the suitable liner for your drylin linear system

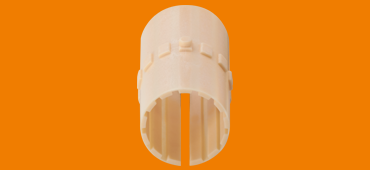

iglidur® J

The all-rounder

For all shaft materials
Application temperature: -50 to +90°C
Best coefficient of friction with steel shaft
Longest service life with aluminium, hard-anodised
Max. static surface pressure: 35 MPa
Moisture absorption: 1.3 % weight

Buy iglidur® J

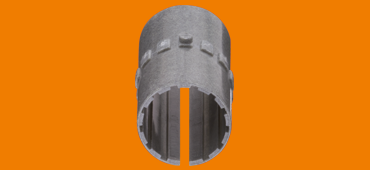

iglidur® J200

The specialist

Particularly for hard-anodised aluminium shaft
Application temperature: -50 to 90°C
Best coefficient of friction with hard-anodised aluminium
Longest service life with aluminium, hard-anodised
Max.static surface pressure: 23 MPa
Moisture absorption: 0.7 % weight

Buy iglidur® J200

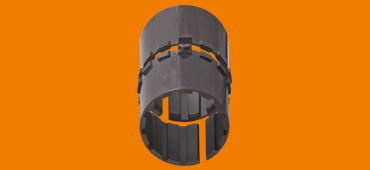

iglidur® X

The extreme

Particularly for hardened stainless-steel shaft/guide
Application temperature: -100 to +250°C
Best coefficient of friction with hard-chromed stainless steel
Maximum service life with hardened stainless steel
Max.static surface pressure: 150 MPs
Moisture absorption: 0.5 % weight

Buy iglidur® X

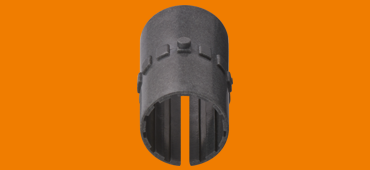

iglidur® E7

The endurance runner

Particularly for steel/stainless-steel shafts
Application temperature: -50 to +70°C
Best coefficient of friction with steel/stainless-steel shaft
Maximum service life with steel/stainless-steel shaft
Max.static surface pressure: 18 MPa
Moisture absorption: 0.1 % weight

Buy iglidur® E7

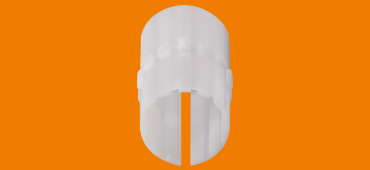

iglidur® A180

FDA-compliant

For all shaft materials
Application temperature: -50 to +90°C
Best coefficient of friction with stainless-steel shaft
Maximum service life with stainless-steel shaft
Max. static surface pressure: 28 MPa
Moisture absorption: 0.2 % weight

Buy iglidur® A180

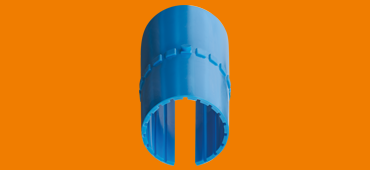

iglidur® A160

Blue Sky Thinking FDA/EU-compliant

Particularly for stainless-steel shafts
Application temperature: -50 to +90°C
Best coefficient of friction with hardened stainless-steel shaft
Maximum service life with hardened stainless-steel shaft
Max.static surface pressure: 15 MPa
Moisture absorption: 0.1 % weight

Buy iglidur® A160

The principle: "sliding instead of rolling"

The advantages of plain bearing liners compared to recirculating ball bearing system

The iglidur® plain bearing liners made of high-performance polymer used for drylin® linear systems are completely lubrication and maintenance-free. The principle of the plain bearing leads to further advantages in favour of a drylin® linear system.

Why plain bearing liners instead of recirculating ball bearing system?

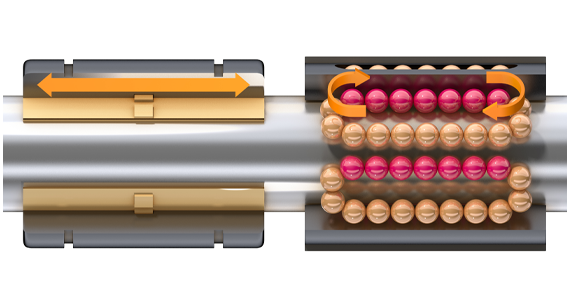

Plain bearing system compared to recirculating ball bearing system

Replace plain bearing liner even more easily

Quick change – smart and time-saving

With the innovative WJ200UMA-01-AL pillow block from the drylin® W product range, it is possible to replace the plain bearing liner even more easily without complicated disassembly work being required.
The tool supplied makes it possible to exchange the plain bearing liner within seconds. This saves valuable time and costs!

To WJ200UMA pillow block

Replace drylin® W plain bearing liner easily

Linear technology by igus®

The versatility of plain bearings in all drylin® linear systems

Maintenance-free solution
Wear-resistant
Resistant to impacts and vibrations
Corrosion-resistant
Resistant to dirt, dust and humidity
Low coefficient of friction
Weight-optimised
100% lubrication-free

Learn more about drylin® linear technology!

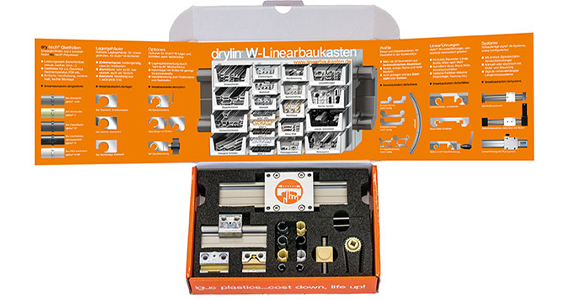

The variety of drylin® W right on your desk

With their extensive modular system, drylin® W profile guides offer greatest product diversity. See for yourself the benefits of our drylin® W profile guides with our sample box.

Order sample box for plain bearing guide now
