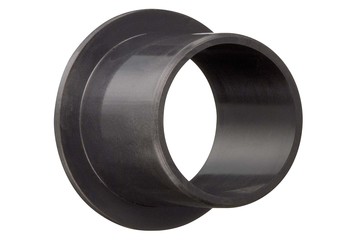

- Part number: P210FM-0405-06
- Material: iglidur® P210
- Shape: Flanged bearings
- Dimensions:
- d1 4 mm
- d2 5.5 mm
- d3 9.5 mm
- b1 6 mm
- b2 0.8 mm
- Adjust dimension
- Manufacturing method: Injection moulding
- Service life:
- Good wear resistance at room temperature
- Good wear resistance at medium temperatures
- Excellent friction coefficients
- Low moisture absorption
- Extremely resistant to edge pressure
- Very resistant to shocks and impacts
- Resistant to dirt and dust
- Fogging behaviour according to DIN 75201-B
iglidur® P210 | Specialist for swivels, roller applications and more - Good friction and wear values on almost any shaft
With iglidur® P210, the user has a versatile all-rounder material at his disposal, which has an above-average service life, especially in swivel applications with medium loads of up to 20 MPa. The versatile material has already proven itself in numerous customer-specific solutions and as a semi-finished product material. Clip-on or pre-stressed designs and use in vehicle interiors are possible.
Typical areas of application
- Agricultural engineering
- Mechanical engineering
- Furniture / industrial design
- Textile industry
When do I use it?
- If you are looking for a universal material for use in damp environments
- When a very wear-resistant material is required for swivel applications in the medium load range
- When edge loads and impacts occur
- If the surface pressure of iglidur® J is not sufficient
When do I not use it?
- When a universal material with the greatest possible variety of dimensions is sought
- If a material is required for very highly loaded swivel applications
- When temperatures greater than +100 °C occur
