drylin® E stepper motor with connector, encoder and brake, NEMA 17

  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: Motor housing IP65 (shaft seal IP52)
  • Holding torque: 0.50Nm
  • Rated current: 1.80A
  • Motor connections: Metric M8/M12 connectors
  • Brake voltage: 24V
  • Integrated brake for vertical loads

Nejste si jisti, zda se hodí?

Download CAD files
Konfigur. pro technologii pohonu s motorem

Konfigur. pro technologii pohonu s motorem

Zde můžete sestavit a dokončit lineární osu včetně motoru, připojovacích kabelů a příslušenství několika kliknutími.
Product description
NEMA17: Small, but lots of power

This little motor has impressive torque and high RPMs. Reliable operation with quick movements of low loads.

Stepper motors from igus® are a good supplement to drylin® linear axes. They are characterised by their cost-effectiveness, their precision and easy control. They work reliably under the most varied environmental conditions (depending on the selected class of protection IP). The igus® stepper motors can be connected to the most common motor controls using standardised electrical connection.

The encoder sends signals from the motor to the motor control. The encoder verifies that the required linear motion has occurred precisely as required. Encoder = increased machine accuracy.

The brake can hold the payload in position when the motor is not under power. This is used as a safety feature during power failures – strongly recommended for vertically mounted systems.


Technická data
Ke stažení

Jiná rešení

Jaw coupling with square axis clamp
Jaw coupling with square axis clamp

Vibration dampening and easy fitting

od 59,97 EUR/ks
Jaw coupling with round axis clamp
Jaw coupling with round axis clamp

Vibration dampening and easy fitting

od 49,66 EUR/ks
Motor flange for stepper and DC motors (motor bell)
Motor flange for stepper and DC motors (motor bell)

Matches the drylin® E coupling

od 47,50 EUR/ks
drylin® D1 motor control system for stepper, DC and EC/BLDC motors
drylin® D1 motor control system for stepper, DC and EC/BLDC motors

Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V

od 721,23 EUR/ks
chainflex® CF240 data cable
chainflex® CF240 data cable

For medium duty applications, PVC outer jacket, shielded, oil-resistant and flame-retardant

od 2,33 EUR/m
chainflex® Connection cable straight M12 x 1, CF.INI CF9
chainflex® Connection cable straight M12 x 1, CF.INI CF9

Socket at the cable front, cable ends cut

od 17,64 EUR/ks
chainflex® Connection cable angled M12 x 1, CF.INI CF9
chainflex® Connection cable angled M12 x 1, CF.INI CF9

Socket at the cable front, cable ends cut

od 17,74 EUR/ks

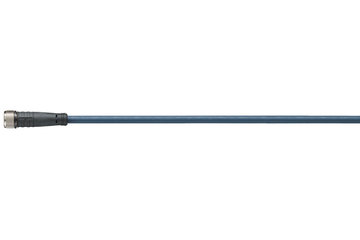

chainflex® Connection cable straight M8 x 1, CF.INI CF9
