drylin® E stepper motor with stranded wire, NEMA 17

  • Installation size: NEMA17/flange dimension 42mm
  • Protection class: IP40
  • Holding torque: 0.5Nm
  • Rated current: 1.80A
  • Motor connection: stranded wires with JST connector

Nejste si jisti, zda se hodí?

Download CAD files
Konfigur. pro technologii pohonu s motorem

Konfigur. pro technologii pohonu s motorem

Zde můžete sestavit a dokončit lineární osu včetně motoru, připojovacích kabelů a příslušenství několika kliknutími.
Product description
NEMA17: Small, but lots of power

This little motor has impressive torque and high RPMs. Reliable operation with quick movements of low loads.

Stepper motors from igus® are a good supplement to drylin® linear axes. They are characterised by their cost-effectiveness, their precision and easy control. They work reliably under the most varied environmental conditions (depending on the selected class of protection IP). The igus® stepper motors can be connected to the most common motor controls using standardised electrical connection.

Motors with stranded wires are the least expensive and the most common stepper motors. The connecting wires for this type exit from the housing and will be connected with a JST connector. They are usually installed in machines and equipment that have an additional housing or are used in clean environments.

Technická data
Ke stažení

Jiná rešení

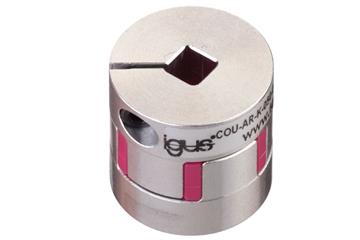

Jaw coupling with square axis clamp
Jaw coupling with square axis clamp

Vibration dampening and easy fitting

od 59,97 EUR/ks

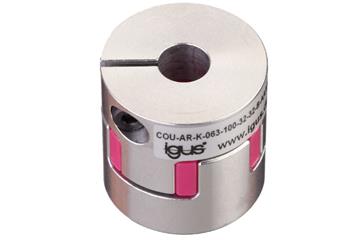

Jaw coupling with round axis clamp
Jaw coupling with round axis clamp

Vibration dampening and easy fitting

od 49,66 EUR/ks
drylin® D1 motor control system for stepper, DC and EC/BLDC motors
drylin® D1 motor control system for stepper, DC and EC/BLDC motors

Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V

od 721,23 EUR/ks
Motor flange for stepper and DC motors (motor bell)
Motor flange for stepper and DC motors (motor bell)

Matches the drylin® E coupling

od 47,50 EUR/ks

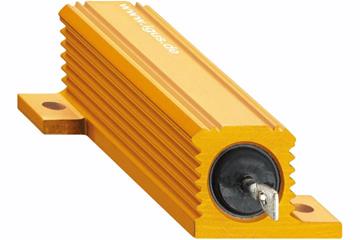

External braking resistors (power class 50/75/100 W) for EC/BLDC motors
External braking resistors (power class 50/75/100 W) for EC/BLDC motors

NEMA17-34

od 6,98 EUR/ks
