Gear CAD configurator online

Configure gears online in less than 60 seconds

New: gear CAD configurator for gears with eight or more teeth

Configure individual gears with low tooth counts for free

Configure gear with a minimum of eight teeth with free templates 3D printed gears with only a few teeth made of iglidur materials
Find our more about the extension of the gear configurator
► Free templates for standard models
► Direct integration into all commonly used CAD programmes for further processing
► Longer gear service life thanks to optimised tooth root geometry
CAD download in all commonly used formats
► No registration necessary
► For single and double gears

Configure gear CAD now

Have a customised gear manufactured

Have a gear 3D printed Design, construction and manufacture: step-by-step video instruction and design tips from our engineers enable you to manufacture a durable gear quickly and easily.


More CAD configurators online

CAD configurator online Configure CAD models of racks, lead screw nuts, rollers, plain bearing bushings, sliding plates and toothed belt discs. Design customised component templates and download them – free of charge and without registration.

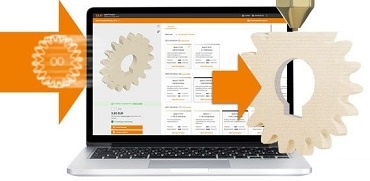

3D printing service

Order gear printed in 3D online Order quickly online from the 3D printing service: just save the gear CAD as a STEP/STP file and upload it to the 3D printing service. Select the right material and determine prices and delivery times immediately. No minimum quantity, up to 10,000 units, ready for dispatch in one to three days, no minimum order charge.
Have gears printed now

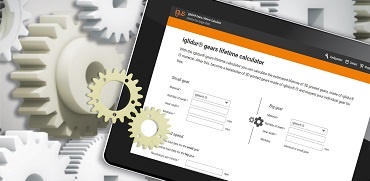

Gear service life calculator

Calculate gear service life How long does a 3D printed gear last? Simply enter the parameters of the application and then calculate the foreseeable service life with just a few clicks of the mouse.
To the service life calculator

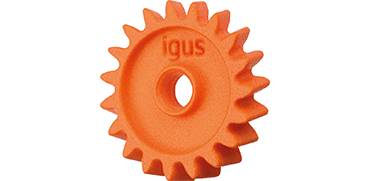

Free gear sample

Order gear sample Still not convinced? See for yourself: we will gladly send you a free gear sample.

Request sample part now

3D printed gears made of iglidur high-performance polymers

► Predictable service life
► Any geometry possible: special shapes and replacement parts
► Optimised tooth root geometry for longer service life
► Self-lubricating: dry operation thanks to solid lubricants

Last up to five times as long as regular plastic gears
Tested and proven: Gears made of iglidur have a much longer service life than machined or injection-moulded gears made of regular plastics.

What material is better for what type of gear?

  • iglidur i3  features greater strength, is especially well-suited for spur gears and bevel gears, and can be used for all other gear shapes.
  • iglidur i6's optimised sliding properties suit it perfectly for worm gears.
  • iglidur i8-ESD is suited to gears that require ESD properties, such as those used in ATEX machines.

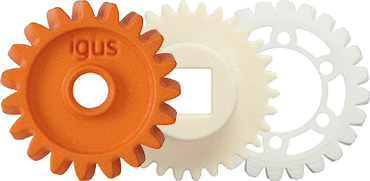

3D printed polymer gears

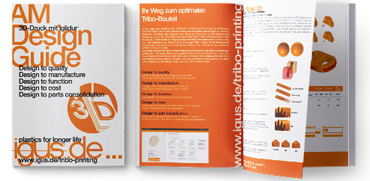

3D printing service design guide

Design tips for 3D printed threads

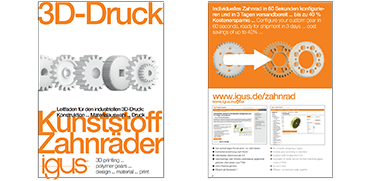

Guidelines for 3D printed gears

Guidelines for the 3D printing of gears

Polymer gear wear tests

3D printing wear tests

iglidur polymers are more wear-resistant than PLA, ABS and other materials and manufacturing processes
Information about 3D printing at igus

Why 3D printing at igus?

Further information about
  • our materials
  • additive processes
  • service and support
igus 3D printing News

3D printing news

Discover more innovations in the field of additive manufacturing at igus, and find our everything about our new materials and services.
